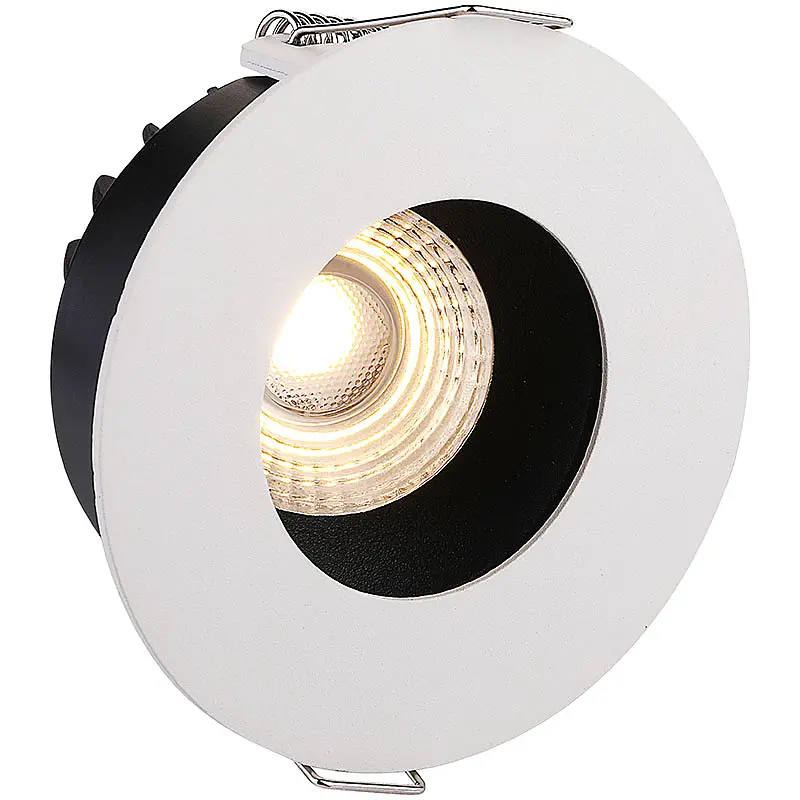

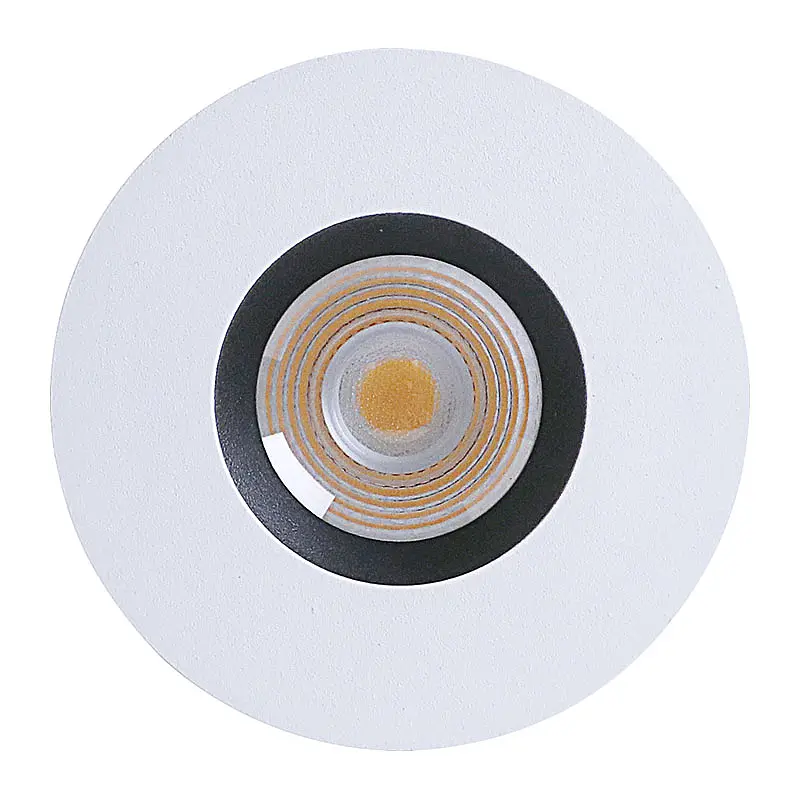

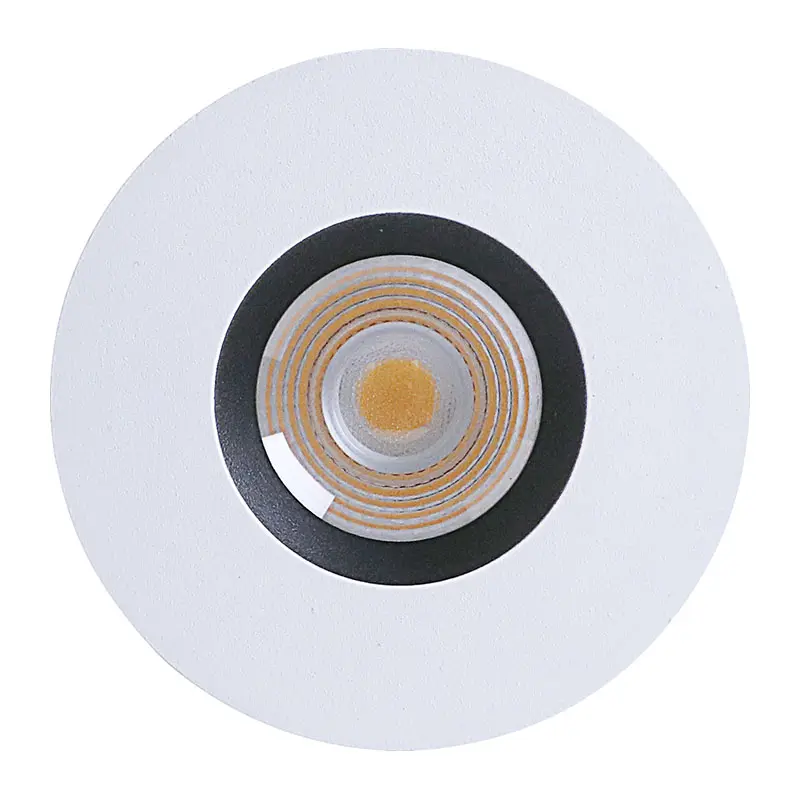

FR1029 10W Fixed Anti-glare Die casting aluminum recessed ceiling spotlight

Model: FR1029
Warranty(Year): 5-Year
Input Voltage(V): AC220-240V
Payment Terms: TT , LC , Others

Product Specifications

Luminous Efficacy(lm/w):66lm/W

Lamp Luminous Flux(lm): 666lm

CRI (Ra>): 80

Lifetime(Hour): 50000

Lamp Body Material: Die Casting Aluminum

LED Source: COB/CREE/Citizen/Bridgelux

Certification: CE, C-tick, EMC, LVD, RoHs,

IP Rating: IP20

Wattage: 10W

CCT: 2700K/3000K /4000K /5000K /6000K

Beam angle: 24°

PF: >0.9

Dimmable type::  1-10V / Triac-dimming/DALI dimmable

Dimension: 90*H60mm, cut 83mm

Finish color: Black/White

Product Introduction

Anti Glare spot light, die-casting aluminum light body with stable quality.

Parameter Table

Model Watt Current
(mA)
Beam Angle Lumen Output CCT (K) Dimension (mm) Cut out (mm)
FR1238 15W 350mA 15°/20°/30°/40° 641 2700-6500K D90*H105 83
FR1035 10W 250mA 15°/20°/30°/40° 424 2700-6500K D90*H86 83
FR1239 15W 350mA 15°/20°/30°/40° 641 2700-6500K D90*H98 83
FR1234 15W 350mA 24° 1016 2700-6500K D90*H80 83
FR1235 15W 350mA 24° 1016 2700-6500K D90*H80 83
FR1031 10W 250mA 24°/36°/60° 750 2700-6500K D90*H77 83
FR1032 10W 250mA 24°/36°/60° 750 2700-6500K D90*90*H77 83*83
FR1236 15W 350mA 24°/36°/60° 1118 2700-6500K D90*H97 83
FR1030 10W 250mA 24° 666 2700-6500K D90*H60 83
