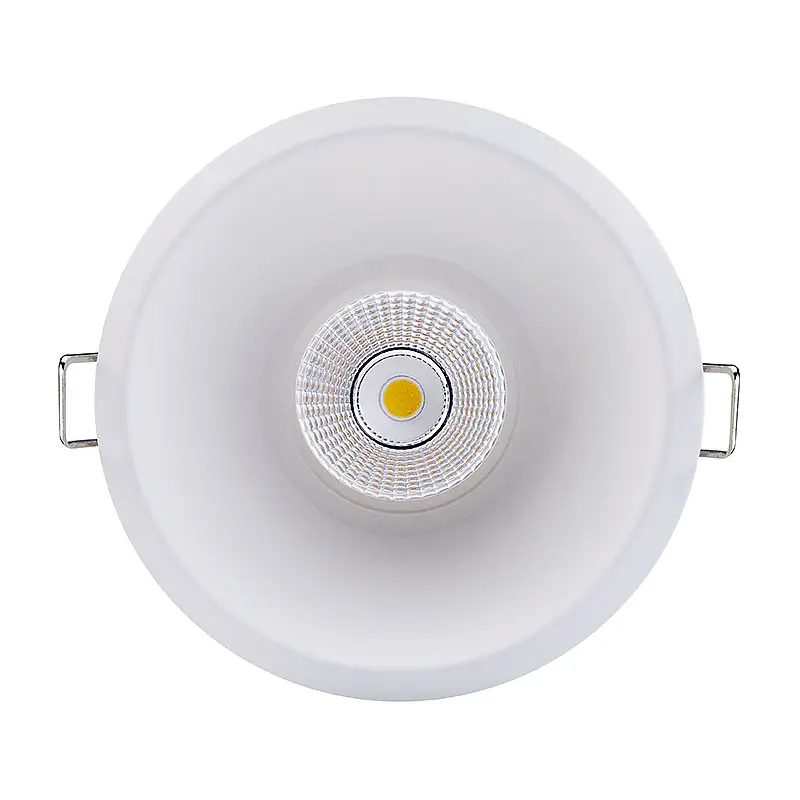

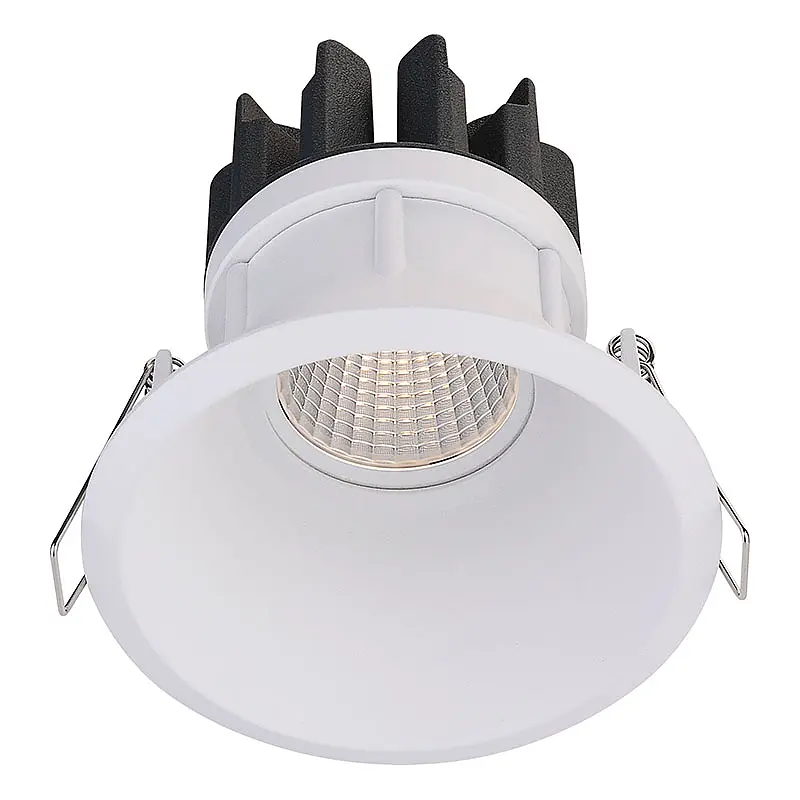

FR1284 10W Fixed Anti-glare Die casting aluminum recessed ceiling spotlight

Product Specifications

Luminous Efficacy(lm/w):68lm/W

Lamp Luminous Flux(lm): 680lm

CRI (Ra>): 80/90

Lifetime(Hour): 50000

Lamp Body Material: Die Casting Aluminum

LED Source: COB/CREE/Citizen/Bridgelux/Samsung

Certification: CE, C-tick, EMC, LVD, RoHs,

IP Rating: IP44

Wattage: 10W

CCT: 2700K/3000K /4000K /5000K /6000K/6500K

Beam angle: 15°/24°/38°

PF: >0.9

Dimmable type:1-10V / Triac-dimming/DALI dimmable

Dimension: Dia 102*H97mm, cut 90mm

Finish color: Black/White

Product Introduction

1.Die casting aluminum lamp body,with white powder spraying on the surface

2.Using embedded high quality LED chip design with deep anti-glare cover

3.Two radiation modes of direct lighting,tiny and fine appearance

4.High CRI 90 is available

5.The vertical 50 degrees and the horizontal 360 degrees adjustable

Parameter Table

Model	Watt	Current (mA)	Beam Angle	Lumen Output	CCT  (K)	Dimension (mm)	Cut out (mm)
FR1257	15W	350	15°/24°/38°	1050lm	2700K-6500K	D102*H118	90
