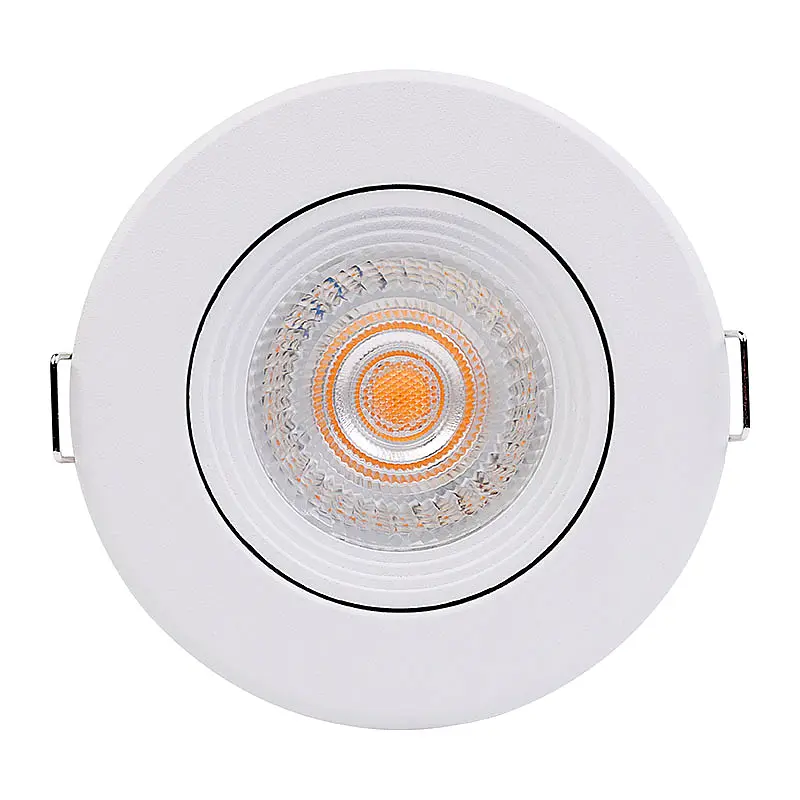

FR1281 10W Adjustable beam angle Die casting aluminum recessed ceiling spotlight

Model: FR1281
Warranty(Year): 5-Year
Input Voltage(V): AC220-240V
Payment Terms: TT , LC , Others

Product Specifications

Luminous Efficacy(lm/w): 79lm/W

Lamp Luminous Flux(lm): 635lm

CRI (Ra>): 80/90

Lifetime(Hour): 50000

Lamp Body Material: Die Casting Aluminum

LED Source: COB/CREE/Citizen/Bridgelux/Samsung

Certification: CE, C-tick, EMC, LVD, RoHs,

IP Rating: IP44

Wattage: 8W

CCT: 2700K/3000K /4000K /5000K /6000K/6500K

Beam angle: 38°

PF: >0.9

Dimmable type:1-10V / Triac-dimming/DALI dimmable

Dimension: Dia 95*H50mm, cut 83mm

Finish color: Black/White

Product Introduction

1.Die casting aluminum lamp body,with white powder spraying on the surface

2.Using embedded high quality LED chip design with deep anti-glare cover

3.Two radiation modes of direct lighting,tiny and fine appearance

4.High CRI 90 is available

5.The vertical 50 degrees and the horizontal 360 degrees adjustable

Parameter Table

Model Watt Current
(mA)
Beam Angle Lumen Output CCT
(K)
Dimension (mm) Cut out (mm)
FR1351 8W 200 15°/25°/38°/60° 720lm 2700K-6500K D95*H45 83
FR1264 5W 120 38° 400lm 2700K-6500K D80*H42 70
FR1318 7W 160 20°/30°/50° 515lm 2700K-6500K D80*H45 70
FR1258 10W 150 24°/38°/60° 760lm 2700K-6500K D90*H82 70
