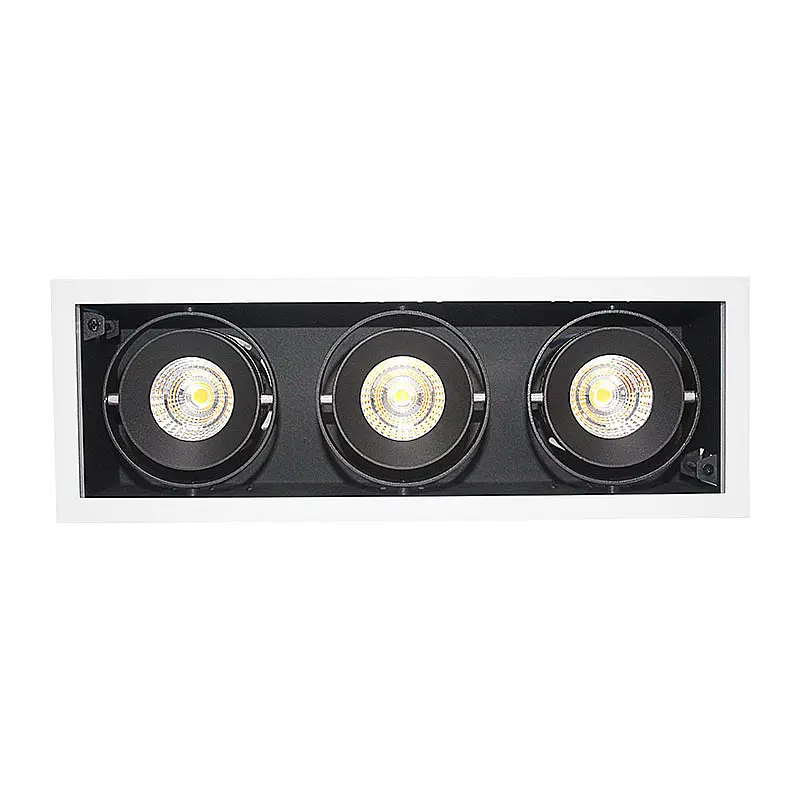

FR1068 3X15/18W Die casting aluminum rimless design square shape ceiling Grille downlight

Product Specifications

Luminous Efficacy(lm/w): 74

Lamp Luminous Flux(lm): 4000lm

CRI (Ra>): 80/90

Lifetime(Hour): 50000

Lamp Body Material: Aluminum Alloy

LED Light Source: CREE COB

Certification: CE, EMC, RoHS,

IP Rating: IP20

Wattage: 3x18W

CCT: 3000K /4000K /5000K /6000K

Beam angle:  15°/24°/50°

PF: >0.9

Dimmable type::  0-10V dimmable/DALI dimmable/Triac dimmable

Dimension: D387*135mm*H110mm

Body color: Black/White

Product Description

Adopting high quality LED chip, with pure light color and good color temperature consistency.

The outer shell is made of mold rolling armor plate with white powder spraying on the surface.

White/Black housing color optional.

Two different structures of rim or rimless frame are optional, which are suitable for different decoration styles

Product Feature

Square frame design, simple and elegant, beautiful appearance.

White powder spraying on the surface, the color won't wear out.

Two different structures of rim or rimless frame are optional, which are suitable for different decoration styles.

Product Table
